PA-9
POWER AMPLIFIER
A revolutionary design where you can change the vacuum tube at your own leasure. Choose between different vacuum tubes to create unique sound that suites your taste in music.
Excellence in vacuum tube audio amplifier
Customize your audio
Change your tubes
ANATECH PA-9 allows you to
change your mood to the music
with interchangeable vacuum tubes
to suit tone and clarity.
Power Amplifier PA-9
- Technical specification
- Product overview
- Download ANATECH PDF brochure
- Download PA-9 PDF
- Download PHLA-9 PDF

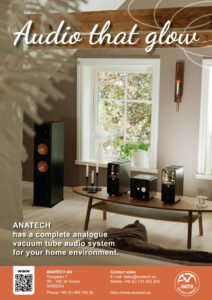

- Download first & last page PDF
- More product Images
| Specifications | |
| Power Output |
15-24 Watts ( r.m.s ) into 8 ohm load impedance. ( Depending on Tube complement ). |
| Distortion ( 1 kHz ) | < 1 % at 15 Watts, below 0,05 % at 1 Watt. |
| Power Bandwidth | 10 Hz to 50 kHz ( -3dB points at 15 W ). |
| Frequency Response | 3 Hz to 180 kHz ( -3 dB points at 1 W ). |
| Gain | 24 dB. |
| Input Sensitivity | 0,67 V r.m.s ( 8 ohm load impedance, 15 W ). |
| Input Impedance | 100 kohm. |
| Tube Complement: |
2 – Matched pair 6L6GC – Power Output, Interchangeable with each other |
| On request the amplifier can be delivered with 5881, 6L6GC, EL34, KT66, KT77, KT88 or 6550 as power output tubes. | |
| Switch: | Power On-Off. |
| Power Requirements: | 230 Vac, 50 Hz, 150 W. Line Fuse : 2 X T1,6 A, 250 Vac. |
| Dimensions: |
Width 150 mm. Dimensions casing only |
| Weight: | 13 kg. |
– Push-Pull Class A ( Ultra linear ).
– Cathode-Bias, automatically set for recommended tubes.
– Excellent dynamics and bass response.
– Extremely low input noise and hum.
– Excellent good linearity.
– Interstage transformer, no signal capacitors.
The PA-9 is a new breed within amplifiers. Enabling the user to customise their audio experience.
Safety according to IEC / EN 62368-1
A complete analogue
audio system
for your home environment.
